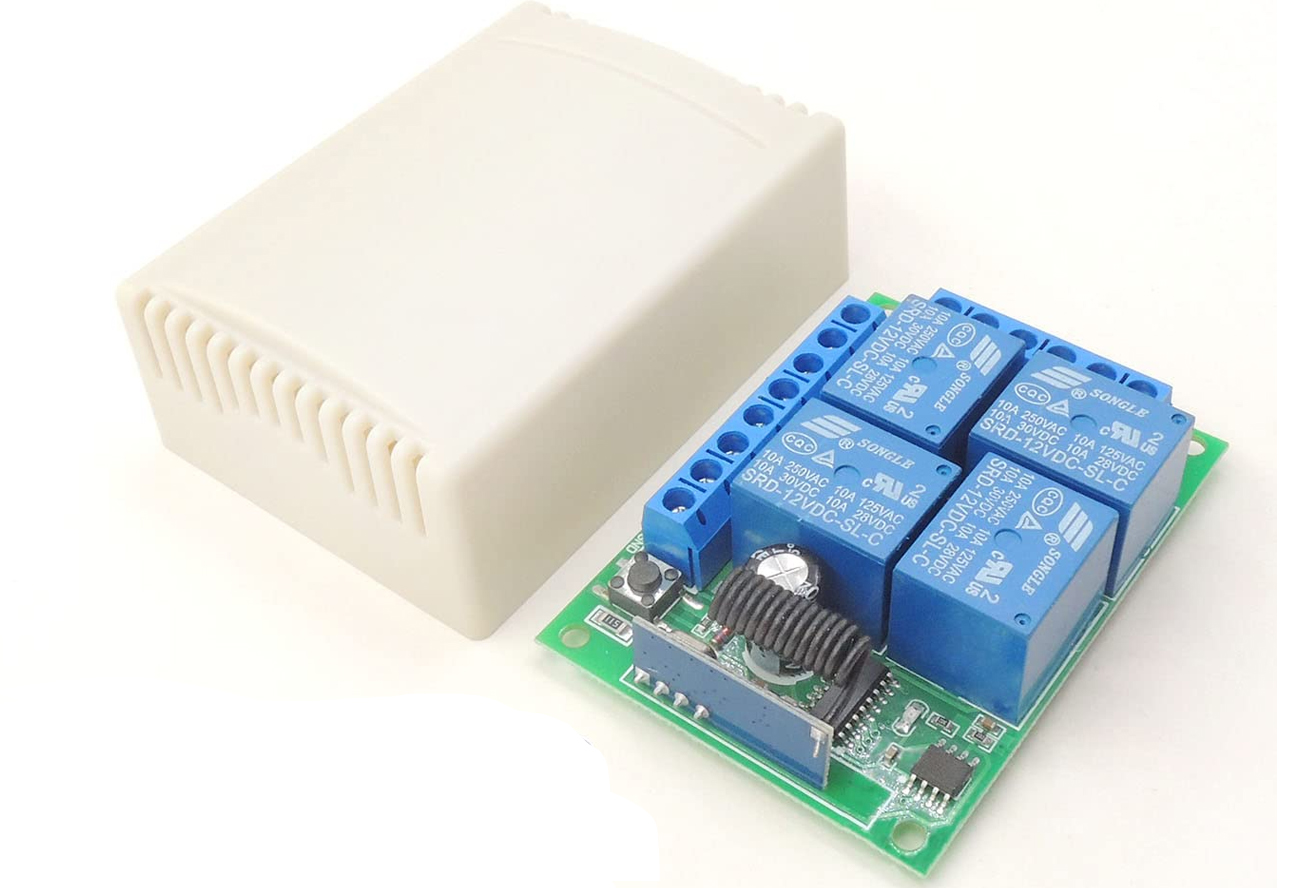

Model: 1204

Product Parameters

• Receiver Operating voltage: DC 12V
• Input / output voltage: 1 ~ 250V
• Max current: 10A
• RF frequency: 433MHz
• Support encoding: 1527 learning code
• Receiving sensitivity:> 97dbm
• RF working mode: ASK superheterodyne wireless reception
• Working temperature: -30 ~ + 80
• Reception range: The open space is more than 50 meters
• Quiescent current: <5 MA

This device compatible with Directive 2014/53 EU Rules: 1204-DOC

Usage guide video: 1204-Video
